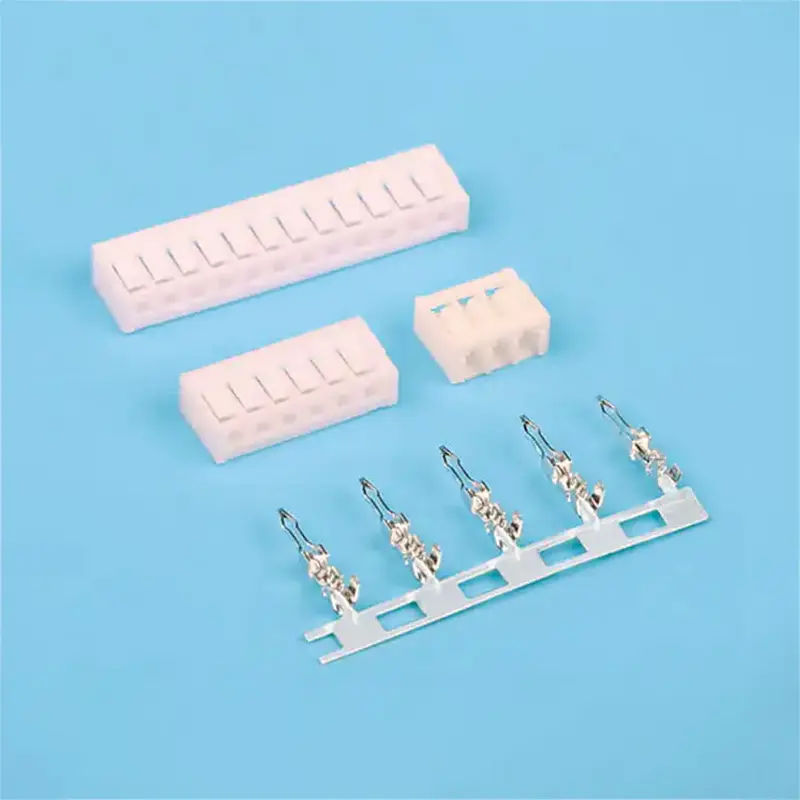

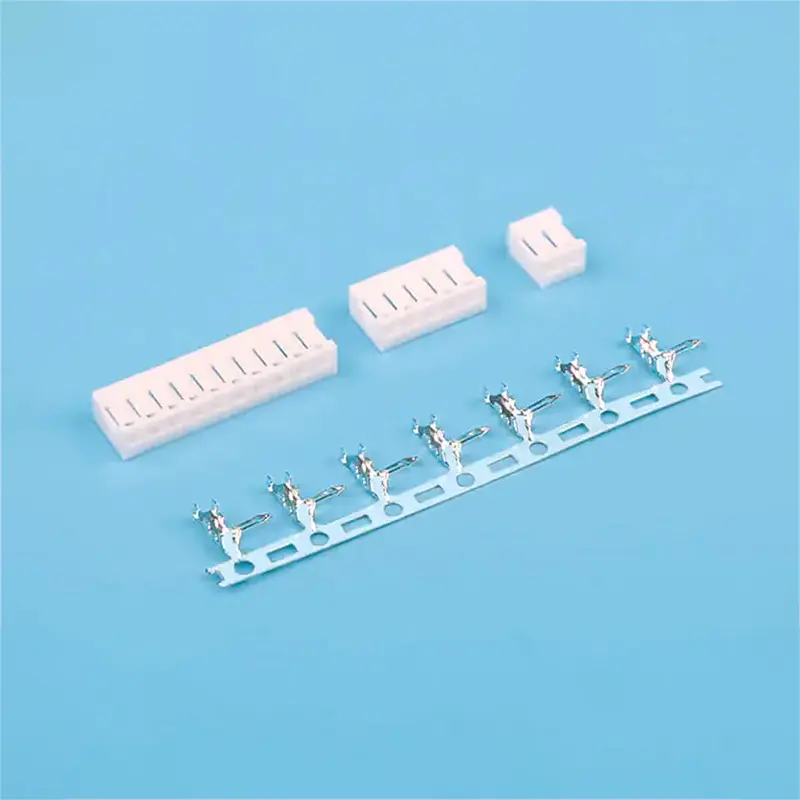

China SAN 2.0mm Pitch Wire Harness Connector Set Male Housing with Terminals Suppliers, Factory
China SAN 2.0mm Pitch Wire Harness Connector Set Male Housing with Terminals Suppliers, Factory
1 / 2
China SAN 2.0mm Pitch Wire Harness Connector Set Male Housing with Terminals Suppliers, Factory
China SAN 2.0mm Pitch Wire Harness Connector Set Male Housing with Terminals Suppliers, Factory

China SAN 2.0mm Pitch Wire Harness Connector Set Male Housing with Terminals Suppliers, Factory

2.0mm pitch wire-to-board strip connector kit, pcb mount, signal transfer, durable housing, for prototyping and electronicsï¼›2.0mm pitch wire-to-board connector kit, smt mount, strip connectors for circuit boards, durable housing, industrial-grade signal transmission.

Send Inquiry

Product Description

📋 Product Specifications
Model Diagram Specification
JC20 Wire-to-Board Strip Connector
JC20 Strip Connector
  • CKT: 2Pin to 20Pin
  • Current rating: 0.7A AC/DC
  • Voltage rating (max): 50V, AC/DC
  • Working Temperature: -25°C to +85°C
  • Insulation resistance: ≥1000MΩ
  • Withstand voltage: 500VAC(rms)
  • Applicable wire: AWG #30 to #26
  • Applicable PCB thickness: 1.6mm to 2.0mm
SAN2.0 Wire-to-Board Straight Connector
SAN2.0 Straight Connector
⚙️ Product Parameters
JC20 Terminal (T=0.2mm)
JC20 Terminal Parameter
Part No. Wire Range Insulation O.D Material Finish
WTJC200-T0 AWG#28~ #24 1.50mm MAX Phosphor bronze Tin & Gold-plated
SAN2.0 Terminal (T=0.2mm)
SAN2.0 Terminal Parameter
Part No. Wire Range Insulation O.D Material Finish
WTSAN20-T0 AWG#28~ #24 1.50mm MAX Phosphor bronze Tin & Gold-plated
📝 Product Description
JC20 Housing

Material: Nylon 66 UL 94V-0

JC20 Housing Dimensions
CKT Part No DIM A (mm) DIM B (mm)
2WTJC200-0224.5
3WTJC200-0346.5
4WTJC200-0468.5
5WTJC200-05810.5
6WTJC200-061012.5
10WTJC200-101820.5
20WTJC200-203840.5
SAN2.0 Housing

Material: Nylon 66 UL 94V-0

SAN2.0 Housing Dimensions
CKT Part No DIM A (mm) DIM B (mm)
2WTSAN20-0225.3
3WTSAN20-0347.3
4WTSAN20-0469.3
5WTSAN20-05811.3
6WTSAN20-061013.3
10WTSAN20-101821.3
20WTSAN20-203841.3
Frequently Asked Questions
What is the current and voltage rating for these connectors?
The JC20 and SAN2.0 series are rated for a maximum current of 0.7A AC/DC and a voltage of 50V AC/DC.
What wire sizes are compatible with the JC20 and SAN2.0 terminals?
These connectors are compatible with wire ranges from AWG #30 to #26 for general specifications, and AWG #28 to #24 for specific terminal models.
What is the operating temperature range?
The working temperature range is -25°C to +85°C, which includes the temperature rise when electrical current is applied.
What material is used for the connector housing?
The housings are made from high-quality Nylon 66 with a UL 94V-0 flammability rating for enhanced safety and durability.
What are the available circuit (pin) configurations?
We offer a wide range of configurations from 2Pin up to 20Pin to meet various PCB design requirements.
What is the recommended PCB thickness for these connectors?
The applicable PCB board thickness for these wire-to-board connectors is between 1.6mm and 2.0mm.
