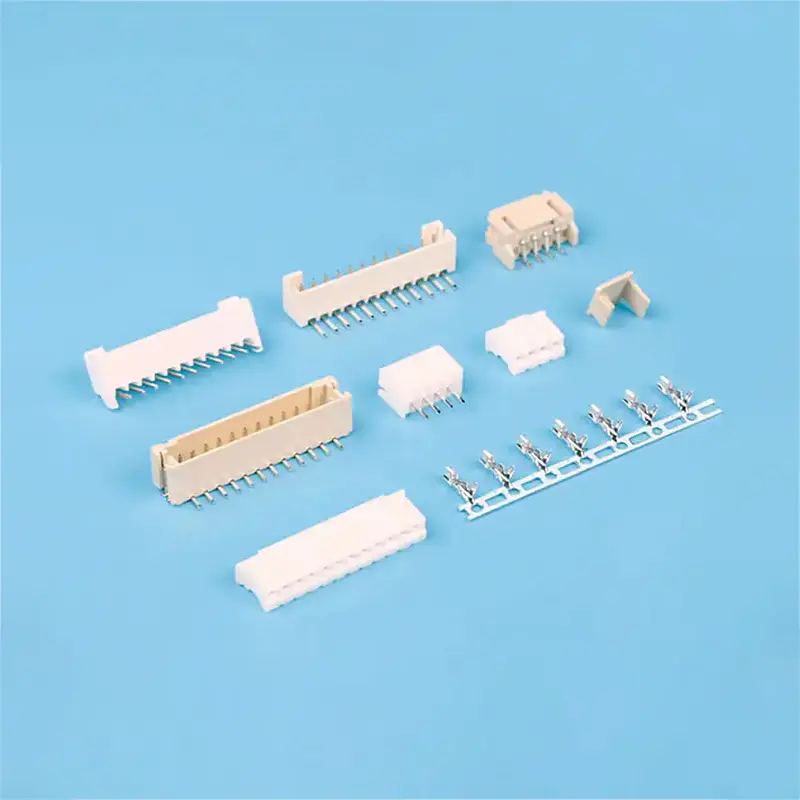

The 2.0-F Type (PH) WTB board-to-board strip connector is designed for efficient electronic data signal connectivity. This connector kit features a 2.0mm pitch design, making it ideal for space-constrained applications. The kit includes a PCB receptacle header designed for wire-to-board interfaces, ensuring a reliable and durable connection. With its rugged housing and high-quality materials, the connector is able to withstand a variety of environmental conditions while maintaining stable performance.
| Diagram | Technical Specification |
|---|---|
|
|
1. CKT: 2Pin to 20Pin 2. Current rating: 2A AC/DC 3. Voltage rating(max): 200V, AC/DC 4. Working Temperature: -25°C~+85°C (Including temperature rise) 5. Contact resistance: Initial ≤25mΩ; After testing ≤55mΩ 6. Insulation resistance: ≥1000MΩ 7. Withstand voltage: 500VAC(ms) 8. Applicable wire: AWG #30 to #24 9. Applicable PCB board thickness: 1.6mm to 2.0mm |
Straight Angle
Right Angle
Terminal Thickness: T=0.2mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
|---|---|---|---|---|
| WT200F0- T0 | AWG#30~ #24 | 1.50mm MAX | Phosphor Bronze | Tin & Gold-plated |
Housing Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A (mm) | DIM B (mm) |
|---|---|---|---|
| 2 | WT200F0-02 | 2 | 4.5 |
| 3 | WT200F0-03 | 4 | 6.5 |
| 4 | WT200F0-04 | 6 | 8.5 |
| 8 | WT200F0-08 | 14 | 16.5 |
| 12 | WT200F0-12 | 22 | 24.5 |
| 16 | WT200F0-16 | 30 | 32.5 |
Wafer Material and Finish:
Housing: LCP/Nylon 66 UL 94V-0
Terminal: Brass Fitting: Brass
Finish: Tin-plated & Gold-plated
